| Place of Origin: | China |
| Brand Name: | ZJHK |
| Certification: | CE, RoHS, SGS, CQC |
| Model Number: | HD-128-MC / HD-128-FC |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotible |
| Packaging Details: | Standard Export Cartons |
| Delivery Time: | 5 Days |
| Payment Terms: | L/C, T/T, Western Union, Paypal |
| Supply Ability: | 100,000 pcs per month |
| Order Number: | 09210643001 & 09210643101 | Model Type:: | Ultra High Density Connector HD Series |
|---|---|---|---|
| Material: | Polycarbonate Sabic 3412 ECR | Wire Connection: | Crimp |
| Housing: | H48B Series | OEM: | Provided |
| Nos Of Contact: | 128 | ||
| Highlight: | Industrial 128 Pin Connector,auto Electronics Heavy Duty Power Connector |
||

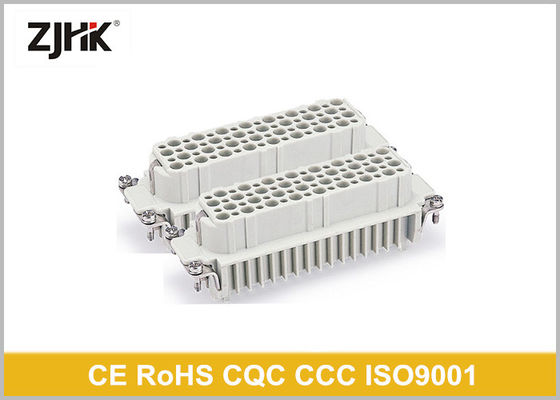

HD 128 Pole Heavy Duty Electric Connector similar Harting Han D Series
Specification
Number of poles: 128
Inflammability class of insulation material acc. with UL94: V0
Colour:Grey
Mating cycles: 500
Pollution degree: 3
Operating temperature range min: -40 °C
Operating temperature range max.: 120 °C
Connection type: Crimp connection
Min. conductor diameter: 0.14 mm²
Max. conductor diameter: 2.5 mm²
Conductor cross section: 26-14 AWG
Contact material: Copper alloy
Surface: Silver plating
Rated voltage according to UL/CSA: 250 V
Rated current according UL: 10 A
Rated current according CSA: 10 A
Rated impulse voltage: 4 kV
Contact resistance: ≤ 3 mOhm
Model: Housing H48B
Housing material: Aluminium
Colour: Grey
Surface: With powder coating
Degree of protection (IP): IP65
Corrosion resistant: Yes
Inflammability class of insulation material acc. with UL94: V0
Operating temperature range min.: -40 °C
Operating temperature range max.: 120 °C
Locking mechanism: Single locking levers
Cable entry: Sideways or Topway
Thread: M50 or PG29
Application
Due to easy installation and cost-saving design, the HD series heavy duty connector are widely used in hot runner system, crane, escalators, Industrial robotic system, Railway transportation, injection machines,
carriage connection, manipulator, textile machinery, lather machine, bottle blowing mahine, packing machine, ceramic machine, glass machinery, marine machinery, Metallurgical Machinery, Hotmelt Machine, molding machine, special purose machines, etc.
Company Information
| Certificate | CE, RoHS, SGS, CQC |
| Manufacturing Experiences | 7 Years |
| Workshop | 10000mm2 |
| Workshop Staff | 50 |
| Engineer | 10 |
| Quality Control System | ISO9001:2008 |
| Machinery | Injection Machine, Diecast machine, CNC machine, Punch Machine, Polish Machine, Drilling Machine. etc |
| Delivery | on Time |
| Stock Qty | more than 2000pcs each model |
FAQ
Q: Is free sample available?
A: Free sample is available , please advise us your DHL account for freight collect service.
Q: Do you have minimum order qty?
A: We have plenty of stock and for standard models, No MOQ requirement. For customized order ( specific logo or colour requirement), we will require 100pcs.
Q: How can I make an order?
A: Please send us your PO by email or fax and we will send you a proforma invoice.
Q: What certificate do you have ?
A: We got CE, RoHS , SGS , ISO, CQC, CCC etc. And our factory are ISO9001:2008 approved.
Q: What's your warranty ?
A: 12 Months and any defective order, will replace immediately.
Q: How soon can I get my order?
A: It usually takes 7~10 days for bulk order, for small order 24 hours will be enough. Customized order will take 15 ~ 20 days.
