| Place of Origin: | China |
| Brand Name: | ZJHK |
| Certification: | CE, SGS, CQC, RoHS |
| Model Number: | HK-008/024-MC / HK-008/024-FC |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotible |
| Packaging Details: | Standard Export Cartons |
| Delivery Time: | 5 Days |
| Payment Terms: | L/C, T/T, Western Union, Paypal |
| Supply Ability: | 100,000 pcs per month |
| Order Number: | 09380323001 & 09380323101 | Connector Type:: | Combination Connector HK Series |
|---|---|---|---|
| Insert Material: | Polycarbonate Sabic 3412 ECR | Wire Connection: | Crimp |
| Housing Model: | H10B Series | Housing Material: | Die Cast Aluminium Alloy |
| Numberes Of Contacts: | 8/24 | Current: | 10A/16A |
| Voltage: | 400V /160V | Package: | Indivisual Packing In Box |
| OEM: | Provided | ||
| Highlight: | multi pin Heavy Duty Wire Connector,Combination Insert 16A rectangular electrical connectors |
||

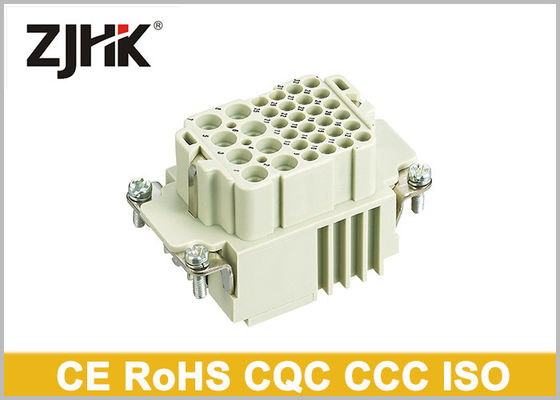

HK-008/024 Heavy Duty Wire Connector Combination Insert 16A + 10A
1. We will give a fast response to your inquiry within 24 hours.
2. OEM is welcomed.
3. Fast delivery
4. Insist Win-Win priciple and our sales team is ready to provide our best service.
5. All the ordered items are 100% checked to make sure the quality
6. Welcome to visit our factory in Liushi Town, Yueqing City, we are near Shanghai and Ningbo.
| HK-008/24 INSERTS | |
| Numbers of contacts | 8/24 + PE |
| Electrical performance according to | EN61984 |
| Power Area | |
| Rated current | 16A |
| Rated voltage | 230/400V |
| Rated impulse voltage | 4KV |
| Pollution degree | 3 |
| Sigal Area | |
| Rated current | 10A |
| Rated voltage | 160V |
| Rated impulse voltage | 2.5KV |
| Pollution degree | 3 |
| Rated voltage according to UL | 600V/300V |
| Insulation resistance | ≥1010Ω |
| Material | Polycarbonate |
| Flammability according to (UL94) | V0 |
| Working temperature | -40℃±125℃ |
| Mechanical working life - mating cycles | ≥500 |
| Power Contacts | |
| Material | Copper alloy |
| Surface | Silver Plated / Gold plated |
| Contact resistance | ≤1mΩ |
| Crimp termnial | |
| Wire gauge | 0.5-4mm2 |
| AWG | 20-12 |
| Sigal Contacts | |
| Material | Copper alloy |
| Surface | Silver Plated/ Gold plated |
| Contact resistance | ≤3mΩ |
| Crimp terminal | |
| mm2 | 0.14-2.5mm2 |
| AWG | 26-14 |
Housing- H10B Series
|
Protection Degree |
IP65 |
|
Material |
Diecast Aluminium |
|
Hoods |
Side Entry or Top Entry |
|
Housing |
Bulkhead, Surface mount, Cable to Cable |
|
Locking Levers |
Single or double |
|
Material |
SS304 anti-corrosion or zinc plated steel |
|
High Construction for larger cable |
Available |
|
Thread |
PG or metric |
|
Salt Spray withstand |
72 hours |
FAQ
Q 1. Are you a factory or trading company?
A. We are a factory.
Q 2. Where is your factory located? How can I visit there?
A. Our factory is located in Yueqing City, Zhejiang Province, China. You can fly to Wenzhou airport directly or take train to Yueqing railway station. We will pick you up.
Q 3. What's the payment term?
A. We accept TT, 30% deposit and 70% before shipment, Western Union, L/C At Sight etc.
Q 4. Tell me the standard of package?
A. First we pack every single part with a plastic bag, then we put bags into inner box, finally all in a big carton. The packing is strong for international transportion.
Q 5. Would you accept to use our logo ?
A. If you order 100pcs each model, no problem to do OEM.
Q 6. How about the transport?
A. If the qty is small we usually use TNT, DHL, FEDEX, EMS and some other express upon your choice. If the qty is big usually we advise FOB Ningbo or Shanghai by sea.
