| Place of Origin: | China |
| Brand Name: | ZJHK |
| Certification: | CE, SGS, CQC, RoHS |
| Model Number: | H2MEE-020-MC / H2MEE-020-FC |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotible |
| Packaging Details: | Standard Export Cartons |
| Delivery Time: | 5 Days |
| Payment Terms: | L/C, T/T, Western Union, Paypal |
| Supply Ability: | 100,000 pcs per month |
| Order Number: | 09140203001 / 09140203101 | Model Type:: | Modular Connector HM Series |
|---|---|---|---|
| Material: | Polycarbonate Sabic 3412 ECR | Contact Type: | Crimp Terminal |
| Current: | 16A | Voltage: | 500V |
| OEM: | Provided | No. Of Contacts: | 20 Pin |
| Highlight: | Han EEE Heavy Duty Electrical Connector,20 Pin heavy duty power connector |
||

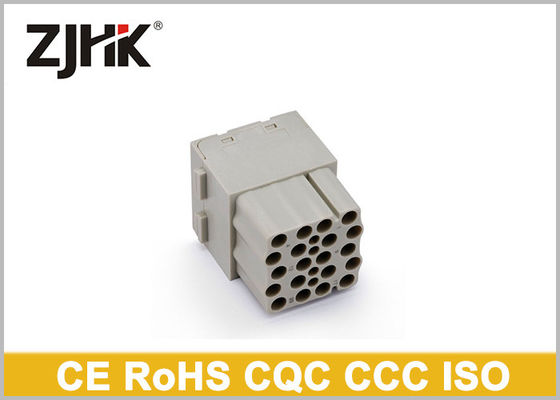

Han EEE Modular Connector 20pin Electrical Power Connector 09140203001
Features
1. Suitable for HE series crimp contacts.
2. High Contact Density
3. Up to 16 A per contact
4. Also suitable as a reliable signal connector
Advantage
1. Space Savings – Integration of multiple connectors into a single unit allow for significant reduction in space requirement.
2. Low-maintenance – Using a pre-assembled, pre-tested connector assembly can reduce hard wiring and installation time.
3. Flexibility – With Modular series, users can assemble their ‘own’ connectors according to their own individual requirements.
4. Future Proof – flexibility to future-proof modular connector design.
Specification
| HMK-002 INSERTS | |
|
Numbers of contacts |
2 |
|
Electrical performance according to |
EN61984 |
| Rated current | 16A |
| Rated voltage | 500V |
| Rated impulse voltage | 6KV |
| Pollution degree | 3 |
| Rated voltage according to UL | 600V |
| Insulation resistance | ≥1010Ω |
| Material | Polycarbonate |
| Flammability according to (UL94) | V0 |
| Working temperature | -40℃±125℃ |
| Mechanical working life - mating cycles | ≥500 |
| Contacts | |
| Material | Copper alloy |
| Surface | Silver Plated |
| Contact resistance | 1mΩ |
| Crimp terminal | |
| Wire gauge | 0.14-4mm2 |
| AWG | 26-12 |
Description
1) Numerous in varieties, sample supply and prompt delivery.
2) Flexible quoting according to customer’s requirement.
3) Die casting, Punching, threading all by CNC machines at own workshop
4) 100% QC checked before selling
5) Give the most competitive price to you.
6) 7 years experiences specialied in heavy duty connector
7) CE, CQC, CCC, SGS certified
8) RoHS compliance, friendly to Environment.
9) Quality assurance in accordance with ISO9001:2008
FAQ
Q: Is free sample available?
A: Free sample is available , please advise us your DHL account for freight collect service.
Q: Do you have minimum order qty?
A: We have plenty of stock and for standard models, No MOQ requirement. For customized order - specific logo or colour requirement, we will require 100pcs for each model.
Q: How can I make an order?
A: Please send us your PO by email or fax and we will send you a proforma invoice. After receiving paymente, we will send order to you as soon as possible.
Q: What certificate do you have ?
A: We got CE, RoHS , SGS , ISO, CQC, CCC etc. And our factory are ISO9001:2008 approved.
Q: What's your warranty ?
A: 12 Months and any defective order, will replace immediately.
Q: How soon can I get my order?
A: It usually takes 7~10 days for bulk order, for small order 24 hours will be enough. Customized order will take 15 ~ 20 days.
