| Place of Origin: | China |
| Brand Name: | ZJHK |
| Certification: | CE, RoHS, SGS, CQC |
| Model Number: | H32B-SF-1L-PG29 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotible |
| Packaging Details: | Standard Export Cartons |
| Delivery Time: | 5 Days |
| Payment Terms: | L/C, T/T, Western Union, Paypal |
| Supply Ability: | 100,000 / Month |
| Order Number: | 09300320251 | Housing Type: | Surface Mounting |
|---|---|---|---|
| Housing Model: | H32B Series | Housing Material: | Die Cast Aluminium Alloy |
| Package: | Indivisual Packing In Box | OEM: | Provided |
| Lever: | Single Lever, Metal | Thread: | PG29 |
| Cable Entry: | Sideway (Single Or Double Entry) | ||
| Highlight: | Surface Mounting Housing,d sub hood assembly |
||

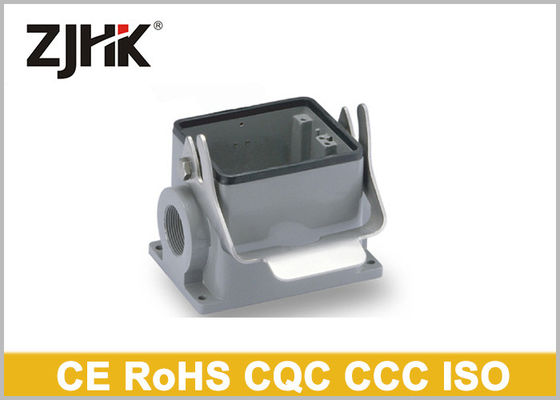

H32B-SF-1L-PG29 Surface Mounting Housing for 32 Pin DIN Connectors
Specification
|
Brand |
ZJHK |
|
Place of Origin |
China |
|
Type |
Surface Mounting |
|
Locking Type |
Single Levers |
|
Lever material |
SS304 Anti corrosion |
| Thread | PG29 (PG36, PG42, M32, M40, M50 Optional) |
|
Material |
Aluminium Diecast |
|
Finish |
Powder-Coated |
|
Colour |
Grey (RAL 7037) or per customer order |
|
Limiting Temperature |
-40C + 125 0C |
|
Flammability |
UL94:V0 |
|
Degree of Protection |
IP65 |
|
Package |
Indivisual part piece package |
|
Stock |
Available |
Compatible: Harting 32B Industrial Hood and Housing, ILME, WEIDMULLER, , Sibas, etc
Certificate: ROHS, CE, CCC, CQC
Quality Managerment System: ISO9001:2008
Experiences: 7 years in manuacturing of heavy duty connector
Main Equipment: Injection machine, Die casting machine, Punching machine, CNC Lathe Machines, Surface Treatment, Laser printing machine, etc
Main Test Facility: temperature measuring device, voltage / insulation resistance tester, Silver plating density test machine, flame retardant machine, Salt spray test machine and push and pull strength test machine.
Staff and Workshop: 50 workshop staff and 10 Engineers. All the process from Mold design, Production, Assembling, Packing and Test are finished at our workshop.
Output: 100,000pcs~150,000pcs.
Warranty: 100% QC checked before selling. And if any quality problem, our engineer will response within 24 hours.
Family Products
| hood side entry with 2 bolts M32 thread | H32B-SE-2B-M32 | 19300320547 |
| hood side entry with 2 bolts PG29 thread | H32B-SE-2B-PG29 | 09300320541 |
| hood side entry with 2 bolts PG36 thread | H32B-SE-2B-PG36 | 09300320542 |
| hood side entry with 2 bolts PG42 thread | H32B-SE-2B-PG42 | 09300320543 |
| hood top entry with 2 bolts M32 thread | H32B-TE-2B-M32 | 19300320447 |
| hood top entry with 2 bolts M40 thread | H32B-TE-2B-M40 | 19300320448 |
| hood top entry with 2 bolts M50 thread | H32B-TE-2B-M50 | 19300320449 |
| hood top entry with 2 bolts PG29 thread | H32B-TE-2B-PG29 | 09300320441 |
| hood top entry with 2 bolts PG36 thread | H32B-TE-2B-PG36 | 09300320442 |
| hood top entry with 2 bolts PG42 thread | H32B-TE-2B-PG42 | 09300320443 |
| housing bulkhead mounted with 1 mental lever | H32B-BK-1L | 09300320307 |
| housing bulkhead mounted with 1 mental lever with plastic COVER | H32B-BK-1L-CV | 09300320304 |
| housing bulkhead mounted with 1 mental lever with metal COVER | H32B-BK-1L-MCV | 09300320318 |
| housing surface mounted with 1 mental lever M32 thread | H32B-SF-1L-M32 | 19300320252 |
| housing surface mounted with 1 mental lever two sides M32 thread | H32B-SF-1L-2M32 | 19300320292 |
| housing surface mounted with 1 mental lever M40 thread | H32B-SF-1L-M40 | 19300320253 |
| housing surface mounted with 1 mental lever two sides M40 thread | H32B-SF-1L-2M40 | 19300320293 |
| housing surface mounted with 1 mental lever PG29 thread | H32B-SF-1L-PG29 | 09300320251 |
| housing surface mounted with 1 mental lever two sides PG29 thread | H32B-SF-1L-2PG29 | 09300320291 |
| housing surface mounted with 1 mental lever PG36 thread | H32B-SF-1L-PG36 | 09300320252 |
| housing surface mounted with 1 mental lever two sides PG36 thread | H32B-SF-1L-2PG36 | 09300320292 |
| housing surface mounted with 1 mental lever M32 thread with plastic COVER | H32B-SF-1L-CV-M32 | 19300320257 |
| housing surface mounted with 1 mental lever two sides M32 thread with plastic COVER | H32B-SF-1L-CV-2M32 | 19300320297 |
| housing surface mounted with 1 mental lever M40 thread with plastic COVER | H32B-SF-1L-CV-M40 | 19300320258 |
| housing surface mounted with 1 mental lever two sides M40 thread with plastic COVER | H32B-SF-1L-CV-2M40 | 19300320298 |
| housing surface mounted with 1 mental lever PG29 thread with plastic COVER | H32B-SF-1L-CV-PG29 | 09300320257 |
| housing surface mounted with 1 mental lever two sides PG29 thread with plastic COVER | H32B-SF-1L-CV-2PG29 | 09300320297 |
| housing surface mounted with 1 mental lever PG36 thread with plastic COVER | H32B-SF-1L-CV-PG36 | 09300320258 |
| housing surface mounted with 1 mental lever two sides PG36 thread with plastic COVER | H32B-SF-1L-CV-2PG36 | 09300320298 |
| housing surface mounted with 1 mental lever M32 thread with mental COVER | H32B-SF-1L-MCV-M32 | 19300321257 |
| housing surface mounted with 1 mental lever two sides M32 thread with mental COVER | H32B-SF-1L-MCV-2M32 | 19300321297 |
| housing surface mounted with 1 mental lever M40 thread with mental COVER | H32B-SF-1L-MCV-M40 | 19300321258 |
| housing surface mounted with 1 mental lever two sides M40 thread with mental COVER | H32B-SF-1L-MCV-2M40 | 19300321298 |
| housing surface mounted with 1 mental lever PG29 thread with mental COVER | H32B-SF-1L-MCV-PG29 | 09300321257 |
| housing surface mounted with 1 mental lever two sides PG29 thread with mental COVER | H32B-SF-1L-MCV-2PG29 | 09300321297 |
| housing surface mounted with 1 mental lever PG36 thread with mental COVER | H32B-SF-1L-MCV-PG36 | 09300321258 |
| housing surface mounted with 1 mental lever two sides PG36 thread with mental COVER | H32B-SF-1L-MCV-2PG36 | 09300321298 |
| hood side entry with 4 bolts M32 thread | H32B-SE-4B-M32 | 19300320527 |
| hood side entry with 4 bolts M40 thread | H32B-SE-4B-M40 | 19300320528 |
| hood side entry with 4 bolts M50 thread | H32B-SE-4B-M50 | 19300320529 |
| hood side entry with 4 bolts PG29 thread | H32B-SE-4B-PG29 | 09300320521 |
| hood side entry with 4 bolts PG36 thread | H32B-SE-4B-PG36 | 09300320522 |
| hood side entry with 4 bolts PG42 thread | H32B-SE-4B-PG42 | 09300320523 |
| hood top entry with 4 bolts M32 thread | H32B-TE-4B-M32 | 19300320427 |
| hood top entry with 4 bolts M40 thread | H32B-TE-4B-M40 | 19300320428 |
| hood top entry with 4 bolts M50 thread | H32B-TE-4B-M50 | 19300320429 |
| hood top entry with 4 bolts PG29 thread | H32B-TE-4B-PG29 | 09300320421 |
| hood top entry with 4 bolts PG36 thread | H32B-TE-4B-PG36 | 09300320422 |
| hood top entry with 4 bolts PG42 thread | H32B-TE-4B-PG42 | 09300320423 |
| housing bulkhead mounted with 2 mental levers | H32B-BK-2L | 09300320301 |
| housing surface mounted with 2 metal levers M32 thread | H32B-SF-2L-M32 | 19300320232 |
| housing surface mounted with 2 metal levers two sides M32 thread | H32B-SF-2L-2M32 | 19300320272 |
| housing surface mounted with 2 metal levers M40 thread | H32B-SF-2L-M40 | 19300320233 |
| housing surface mounted with 2 metal levers two sides M40 thread | H32B-SF-2L-2M40 | 19300320273 |
| housing surface mounted with 2 metal levers PG29 thread | H32B-SF-2L-PG29 | 09300320231 |
| housing surface mounted with 2 metal levers two sides PG29 thread | H32B-SF-2L-2PG29 | 09300320271 |
| housing surface mounted with 2 metal levers PG36 thread | H32B-SF-2L-PG36 | 09300320232 |
| housing surface mounted with 2 metal levers two sidesPG36 thread | H32B-SF-2L-2PG36 | 09300320272 |
| housing surface mounted with 2 metal levers two sides PG42 thread | H32B-SF-2L-2PG42 | 09300320273 |
| cable to cable housing with 2 mental levers M32 thread | H32B-CCT-2L-M32 | 19300320737 |
| cable to cable housing with 2 mental levers M40 thread | H32B-CCT-2L-M40 | 19300320738 |
| cable to cable housing with 2 mental levers PG29 thread | H32B-CCT-2L-PG29 | 09300320731 |
| cable to cable housing with 2 mental levers PG36 thread | H32B-CCT-2L-PG36 | 09300320732 |
| cable to cable housing with 2 mental levers PG42 thread | H32B-CCT-2L-PG42 | 09300320733 |
