| Place of Origin: | China |
| Brand Name: | ZJHK |
| Certification: | CE, SGS, CQC, RoHS |
| Model Number: | HK-006/36-Mc / HK-006/36-Fc |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotible |
| Packaging Details: | Standard Export Cartons |
| Delivery Time: | within 10 days after payment |
| Supply Ability: | 10,000 pcs per month |
| Metrial: | Polycarbonate Sabic 3412 ECR | Part Number: | 09380423001&09380423101 |
|---|---|---|---|
| Connector Type:: | Crimp Inserts | Wire Connection: | Crimp Pin |
| Housing Material: | Die Cast Aluminium Alloy | Nos Of Contacts: | 6 + 36+PE |
| Highlight: | 36 Pos Signal Connector Inserts,09380423101 Signal Connector Inserts,Polycarbonate Sabic Signal Connector Inserts |
||

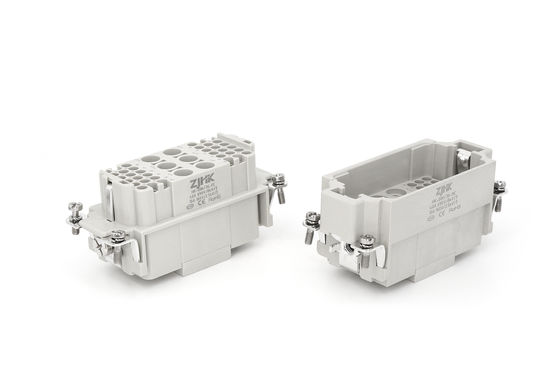

Inserts, Crimp termination, Male, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: 40 A, Size: 16 B
Contacts: 6, + 36 additional signal contacts, Conductor cross-section: 1.5 ... 6 mm², 0.14 ... 2.5 mm² Signal
Part number: 09 38 042 3001/09 38 042 3101
| Category | Inserts |
| Series | HK series |
| Identification | HK 006/36 |
| Termination method | Crimp termination |
| Gender | Male and Female |
| Shell Size fit | 16B |
| Number of Power contacts | 6 (40A) |
| Additional contacts | 36 additional signal contacts (10A) |
| PE contact | Yes |
| Remind | Please order crimp contacts separately. |
| Conductor cross-section (40A) | 1.5 ... 6 mm² |
| Conductor cross-section (10A) | 0.14 ... 2.5 mm² Signal |
| Wire outer diameter | ≤5 mm |
| Rated current | 40 A |
| Rated voltage | 690 V |
| Rated impulse voltage | 8 kV |
| Rated current (signal) | 10 A |
| Rated voltage (signal) | 160 V |
| Rated impulse voltage (signal) | 2.5 kV |
| Pollution degree | 3 |
| Insulation resistance | >1010 Ω |
| Limiting temperature | -40 ... +125 °C |
| Mating cycles | ≥ 500 |
| RoHS | compliant |
| Packaging size | 1 of each gender in a bag |
| Country of origin | China |
It has been possible to house four power contacts plus a separate PE (protective earth) contact by making maximum use of the available space and by using space-saving axial screw terminations. These power contacts and the PE contact can be used for AWG of up to 16-10 , allowing current-carrying capacities of up to 40 A to be achieved.
Male :
Female :
Both the female and male inserts are finger safe and can be used in many diverse applications.
The combination of very compact size and the finger protection of the female and male contacts make the new insert a viable alternative to circular IEC EN60309 connectors for many applications.
